Static Lumbar 1



This piece is composed of 10 compression tetrahedrons. Each tetrahedron is constructed of 6 steam bent Cedar struts, joined to 4 Poplar tips. Each tip has a cast Pewter fitting to clamp the nylon seine cord tension strings. The caps of the clamp tips are secured with four brass 2-56 screws and hex nuts. The base is Cedar. The individual tetrahedrons are adjusted to give the overall piece a graceful flow from base to top. This piece is 43" tall.

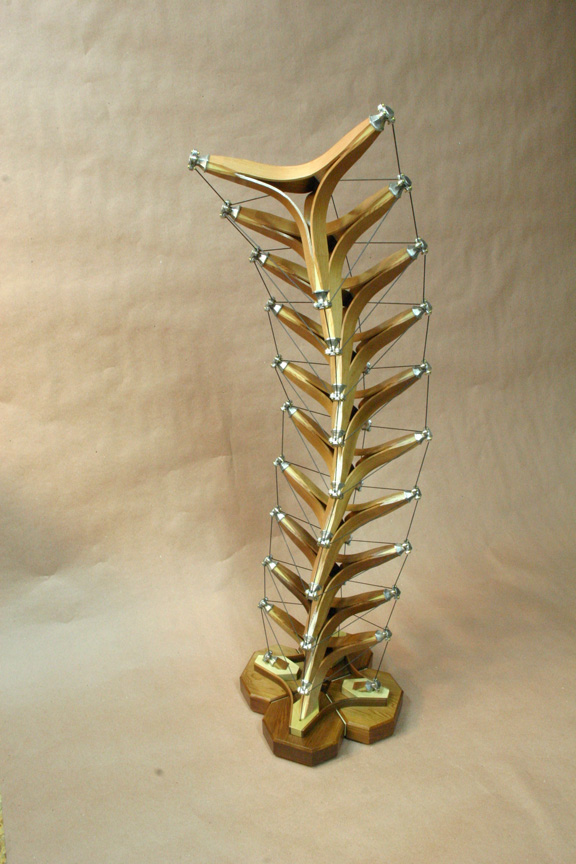

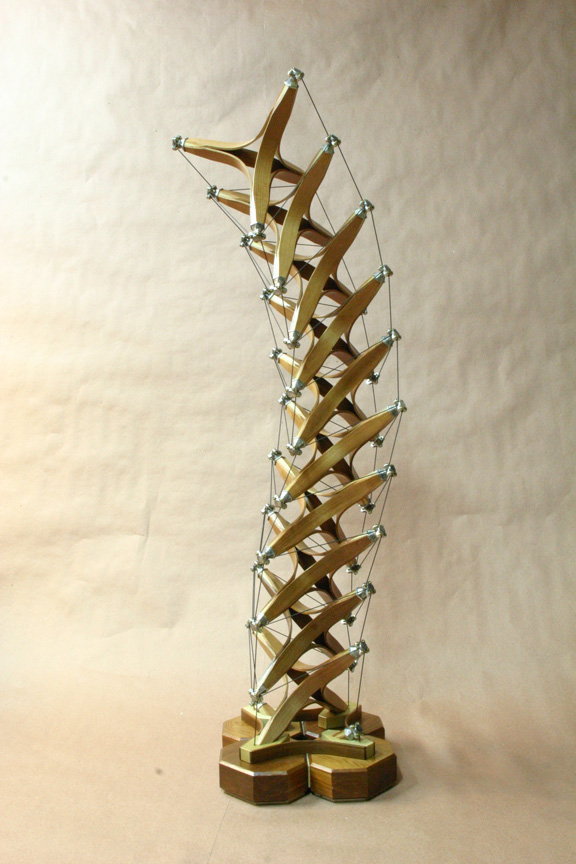

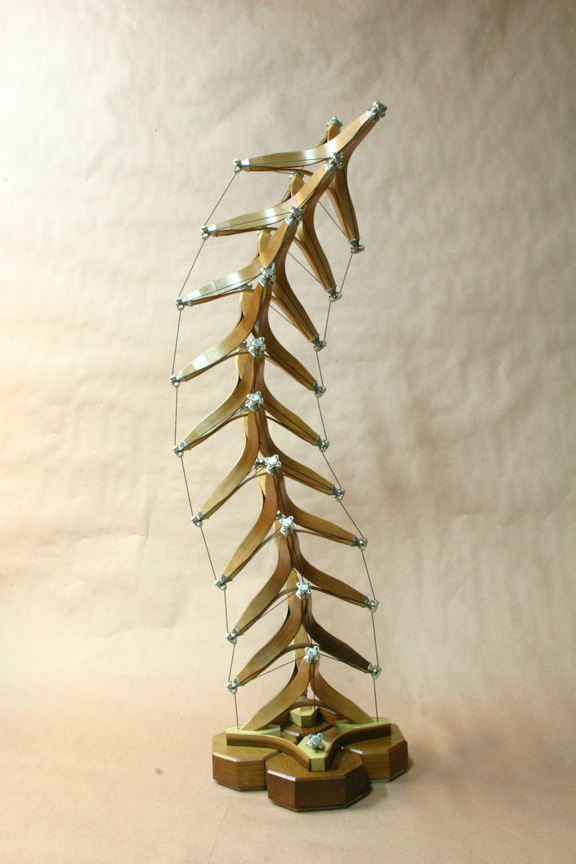

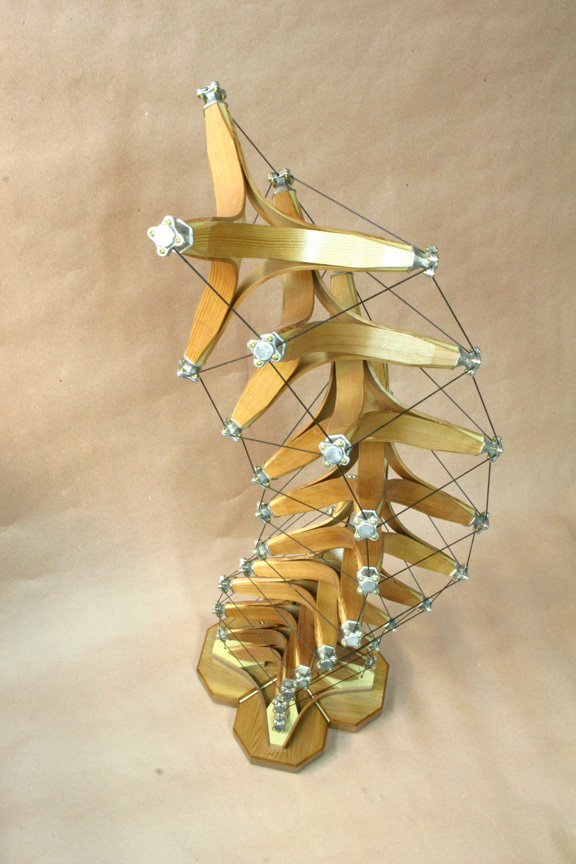

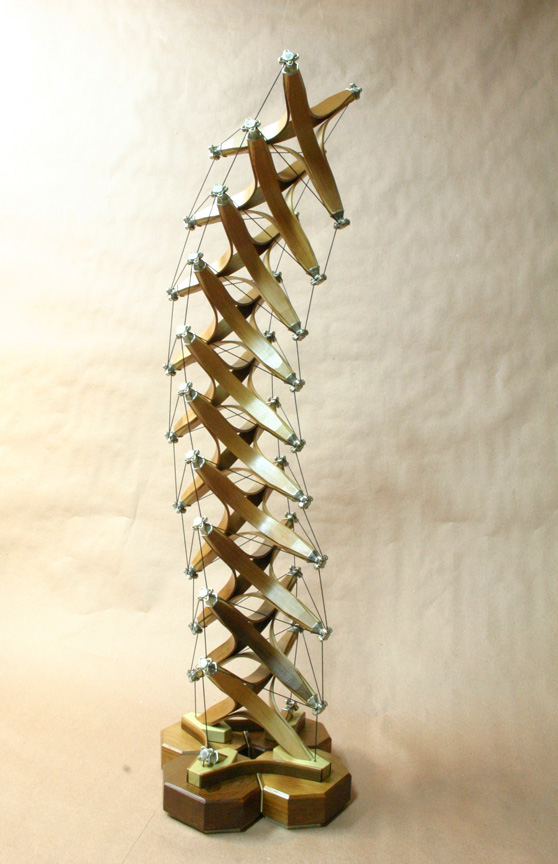

Here are six views of the overall piece.

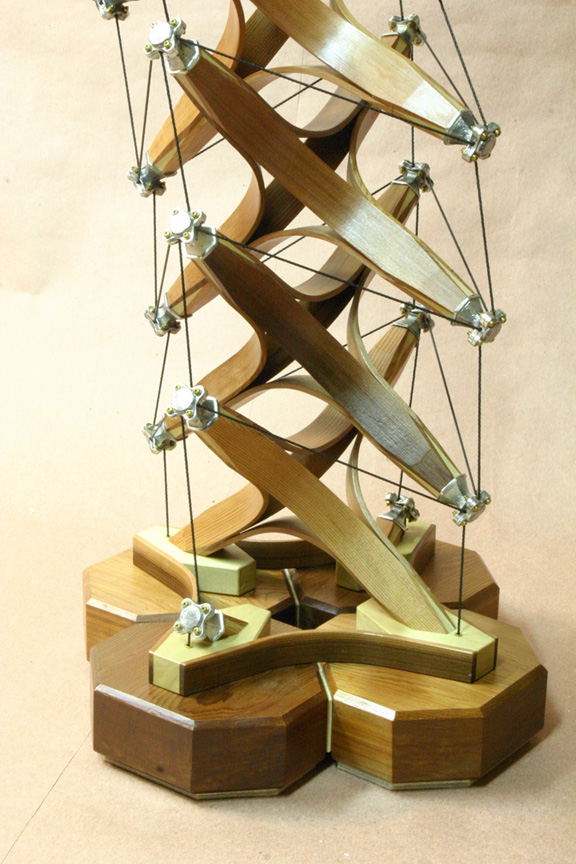

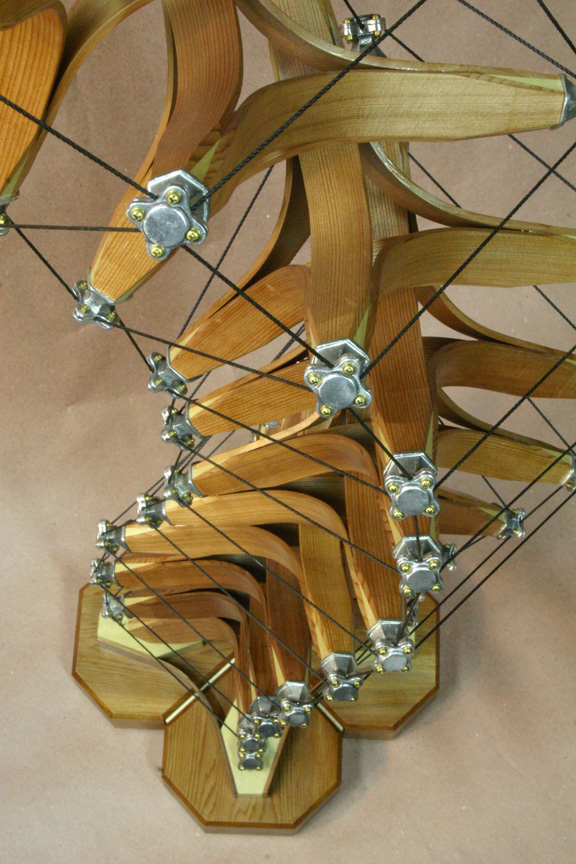

This is a look at the base.

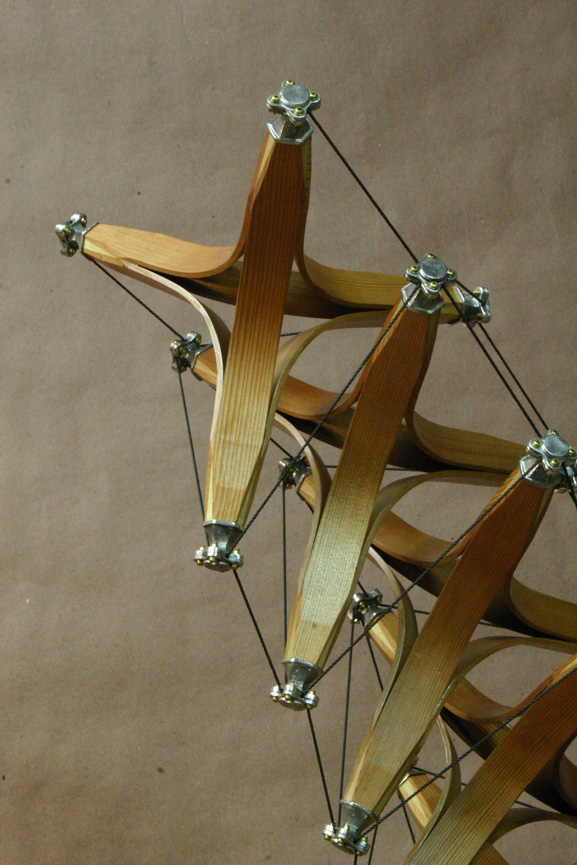

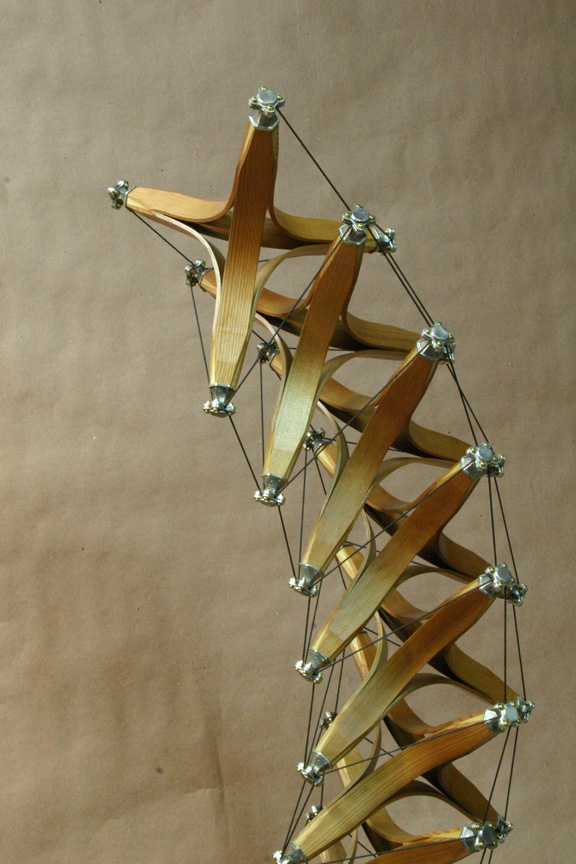

This shows two views of the top of the piece.

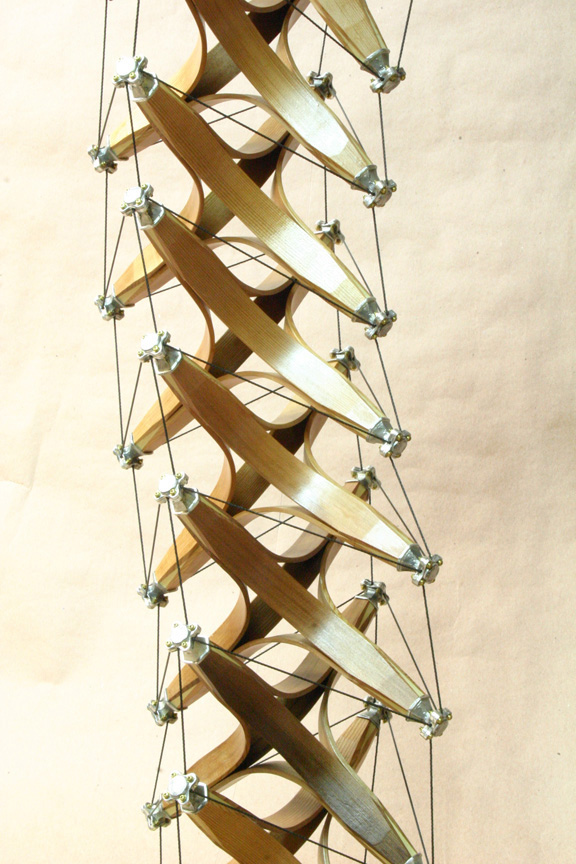

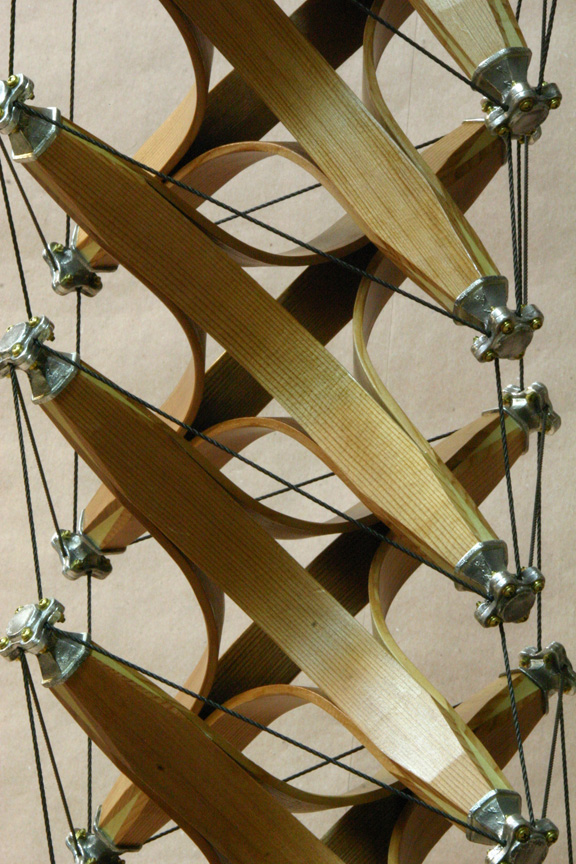

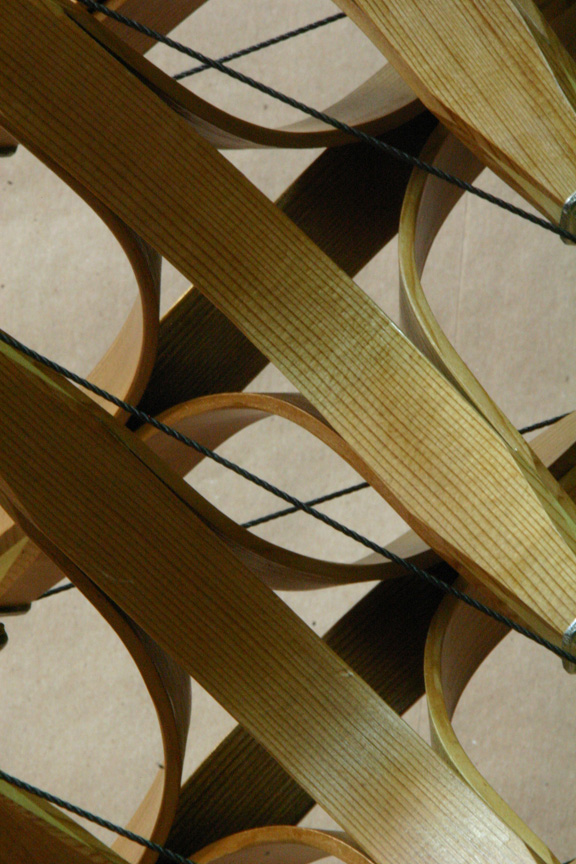

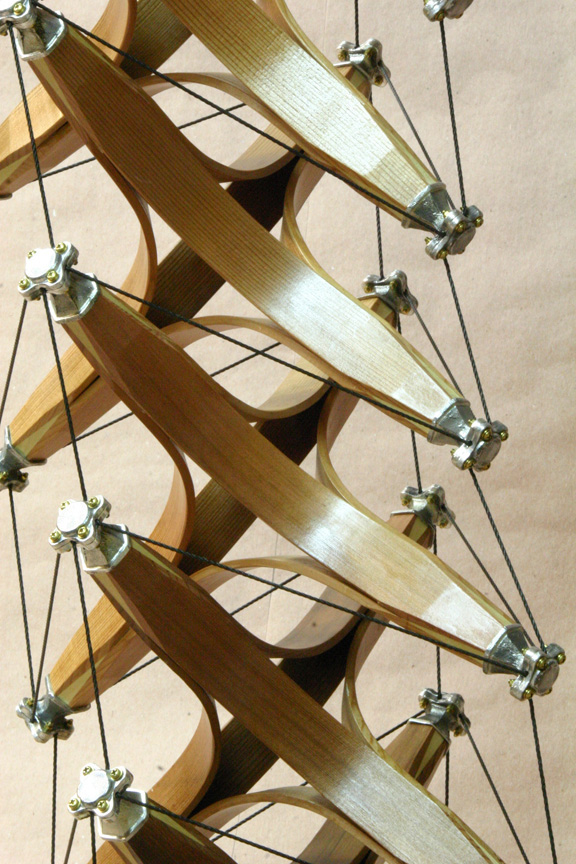

Here are four closeup shots, moving in to show the strut details.

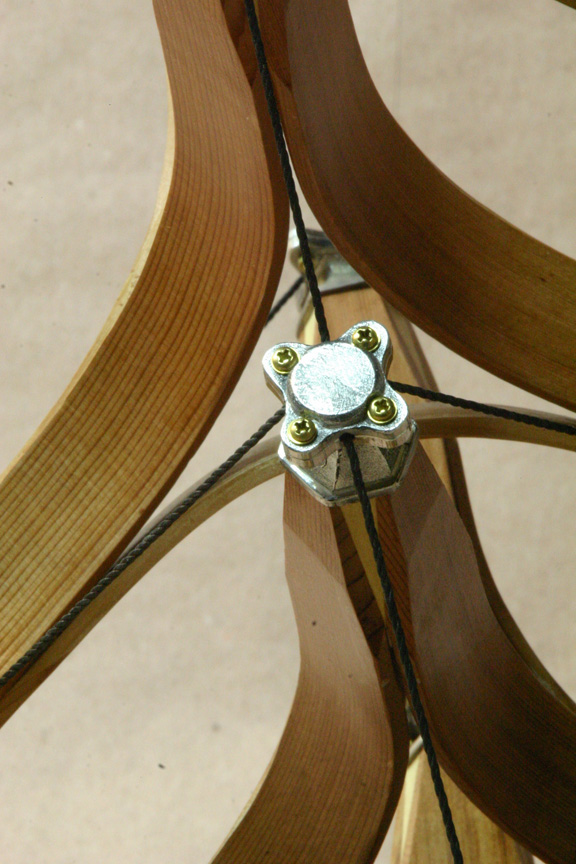

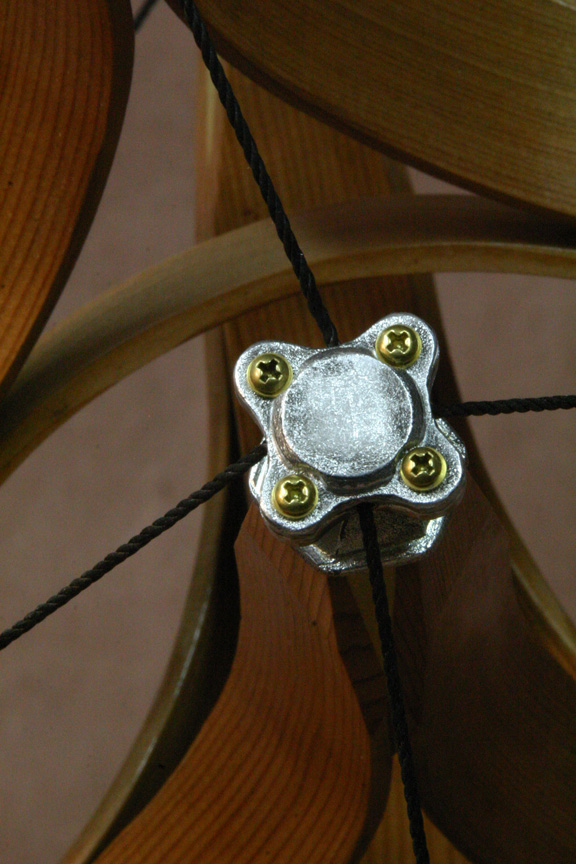

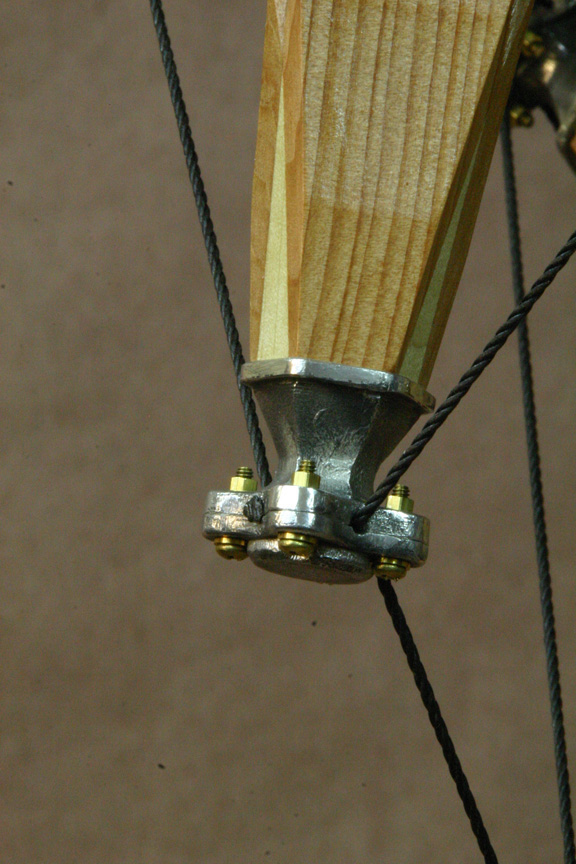

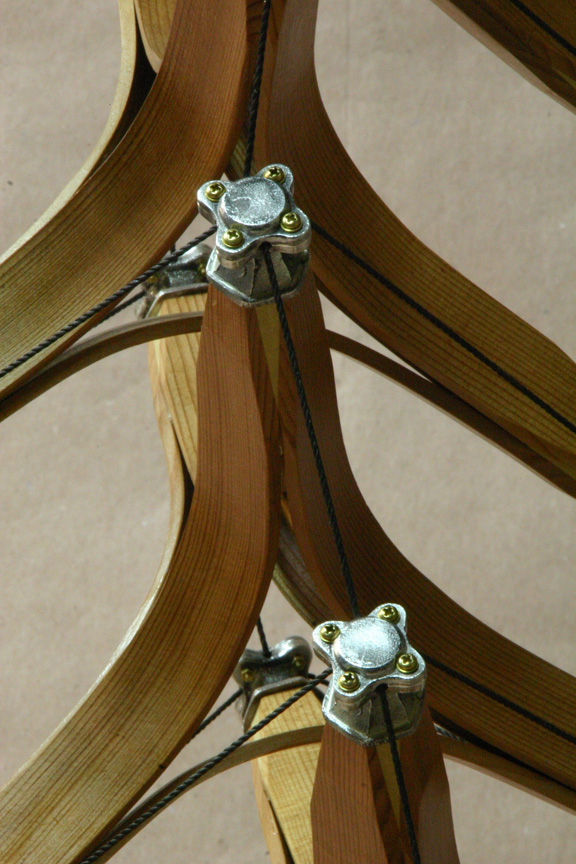

Here are four shots showing the details of the tip clamps.
